Product Details

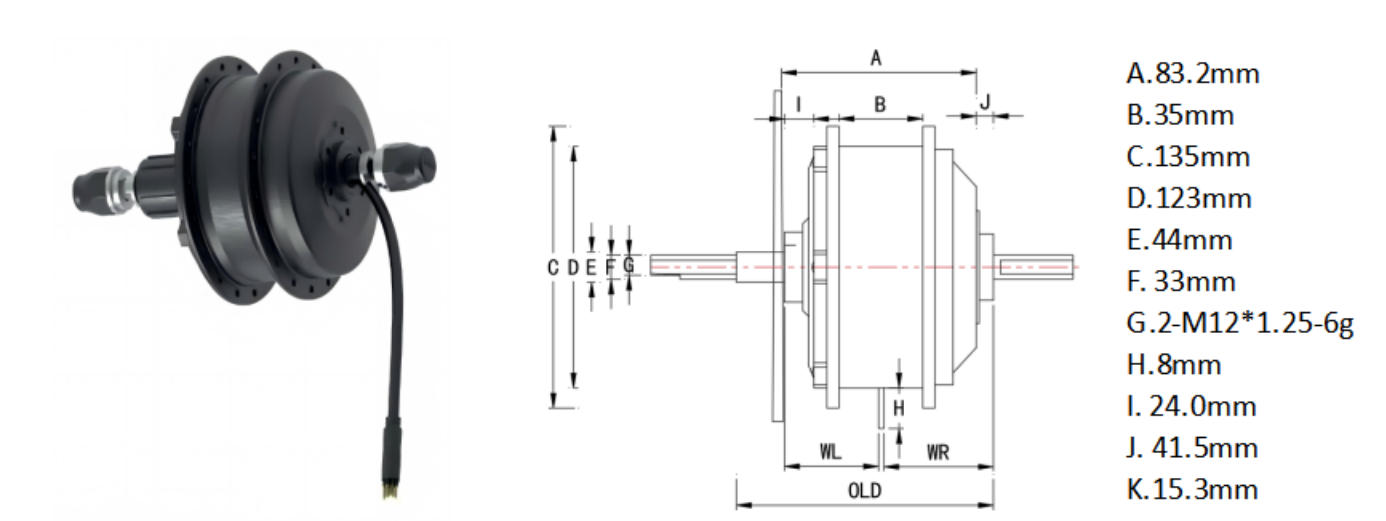

| OLD | 140mm |
| WL | 62.0mm |
| WR | 70.0mm |
| Installation Position | Rear Wheel |
| Motor Model | M098310.DC |
| Applicable Model | e-city |
| Wheel Size(Inch) | 26/28/700C |
| Deceleration type | Outer Rotor Single-stage Reducer |
| Rated Voltage(V) | 36/43/48 |
| No-load Speed(Rpm) | 220±10 |
| Rated Power(W) | 250 |
| Rated Speed(Rpm) | 205±10 |
| Max Torque(N.m) | 45 |
| Efficiency(%) | ≥80 |
| Weight(Kg) | 3.2 |
| Noise Level(dB) | ≤55 |
| Operating Temperature(℃) | -20～45 |
| Brake Type | Disc Brake |
| Cabling Route | Shaft Side_Left |
| Spoke Specifications | 36H*13G |
| Tests & Certifications | CCC/CE Waterproof:IPX5 Salt Spray Test Standard(h):96 |

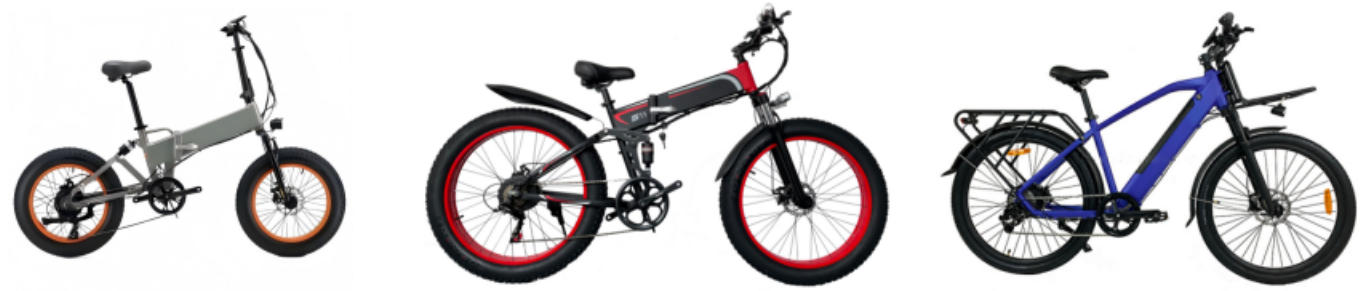

Applicable To Vehicle Models:
