YDL-BL DC Motor Model:48-15-20-23

Brushless DC Motor

WhatsAPP Contact Us
Product Details

YDL-BL DC Motor Model:48-15-20-23



YDL-BL DC Motor Model:48-15-20-23



YDL-BL DC Motor Model:48-15-20-23


MainTechnical Data:



MODE VOLTAGE NO-LOAD LOAD MAXIMUM OUTPUT EFF STALL
voltage
range 		test
voltage 		SPEED CURRENT SPEED CURRENT TOTPUT A N/m
RPM A RPM A N/m W %
YDL4815S 12.0-24.0 18.0  16200  2.00  14000  12.5  0.14  183.0  78  92.0  1.00
YDL4815S 12.0-24.0 21.6  20500  2.36  18100  15.6  0.14  242.0  74  98.0  0.88
YDL48F20S 12.0-24.0 18.0  22000  4.60  18484  42.5  0.32  607.0  79  225.0  1.98
YDL48F20S 12.0-24.0 18.0  23000  4.50  19200  35.2  0.28  530.0  82  186.0  1.70
YDL48F23S 9.0-16.0 14.4  24000  7.80  20500  40.0  0.21  418.0  73  220.0  1.30
YDL48F23S 12.0-24.0 18.0  23000  4.80  20450  33.2  0.22  450.0  76  210.0  1.56

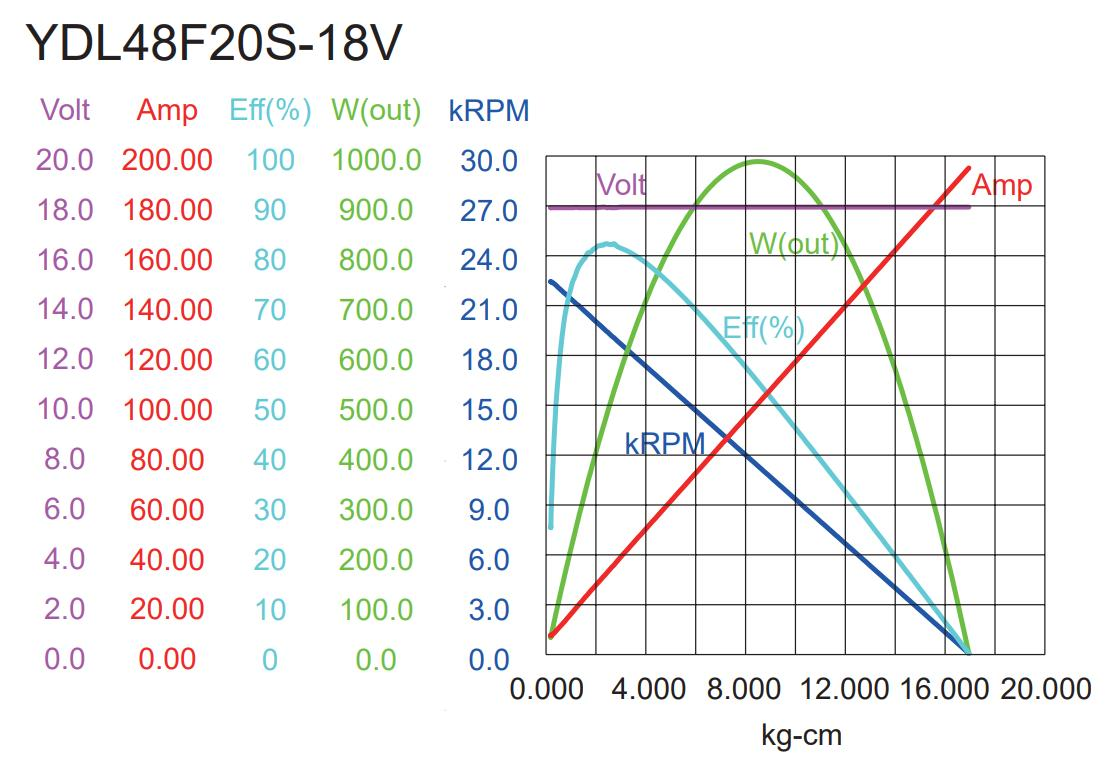

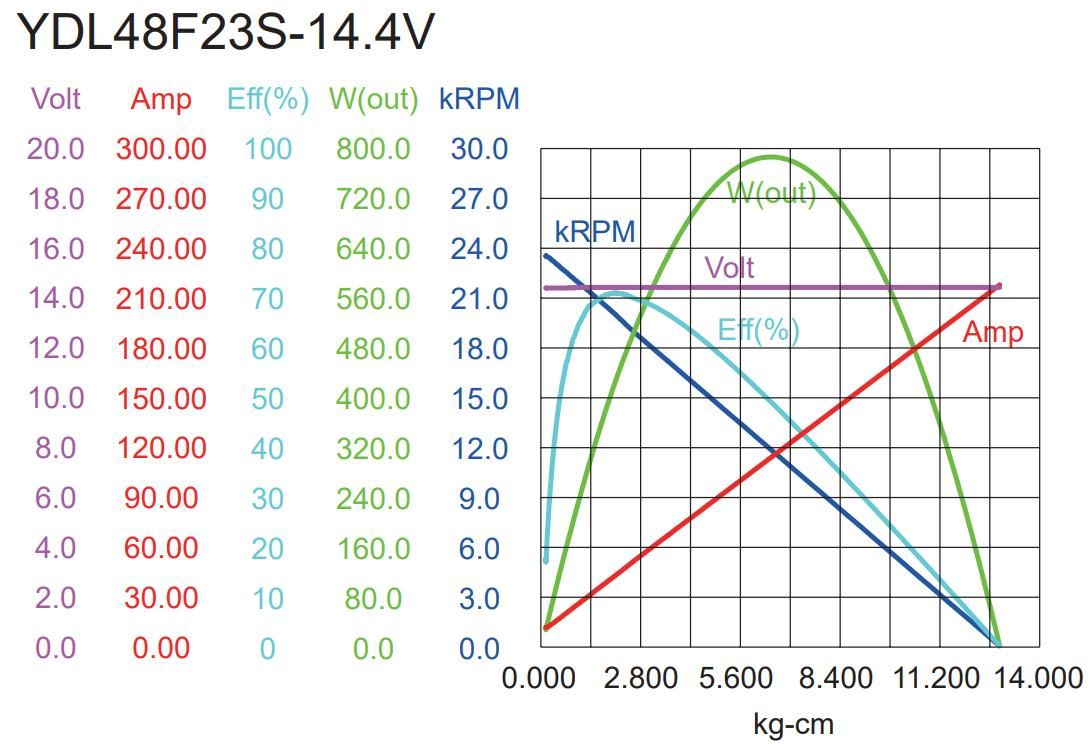

Performance curve：

YDL-BL DC Motor Model:48-15-20-23 1YDL-BL DC Motor Model:48-15-20-23 2



Application Scenarios：

electrictools,electrictorquewrench,electricanglegrinder
