YDL-BL DC Motor Model:50/65 YDL-BL DC Motor Model:50/65

YDL-BL DC Motor Model:50/65

Brushless DC Motor

WhatsAPP Contact Us
Product Details

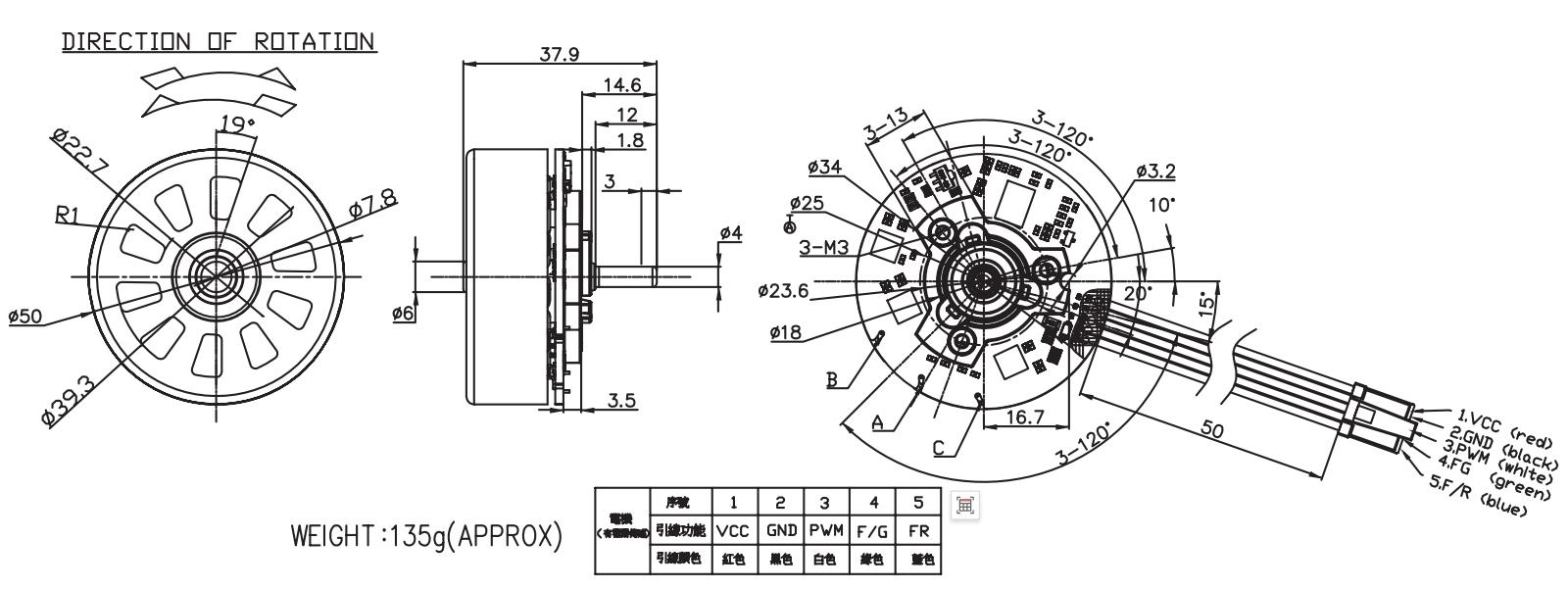

YDL-BL DC Motor Model:50/65 1

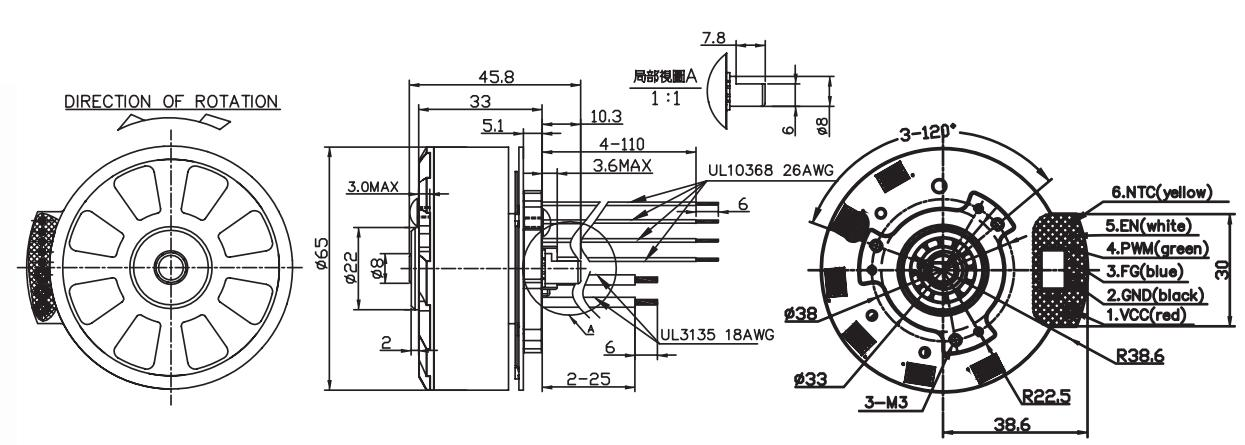

YDL-BL DC Motor Model:50/65 2




Main Technical Data:

MODE VOLTAGE NO-LOAD LOAD MAXIMUM OUTPUT EFF STALL
voltage
range 		test
voltage 		SPEED CURRENT SPEED CURRENT TOTPUT A N/m
RPM A RPM A N/m W %
YDL50E20B 12.0-30.0 20.0  3000  0.21  2200  1.10  0.0058  13.0  70  4.10  0.026
YDL50F20B 24.0-36.0 28.0  4100  0.13  3200  1.18  0.0060  20.0  76  4.50  0.030
YDL65E33S 12.0-24.0 12.0  2800  0.90  2300  10.0  0.0042  105.0  82  74.0  0.320
YDL65E33S 12.0-48.0 24.0  2400  0.51  2200  4.80  0.0043  98.0  87  54.0  0.530
YDL65E33S 12.0-24.0 21.6  4100  1.40  3500  8.60  0.0040  135.0  77  55.2  0.310

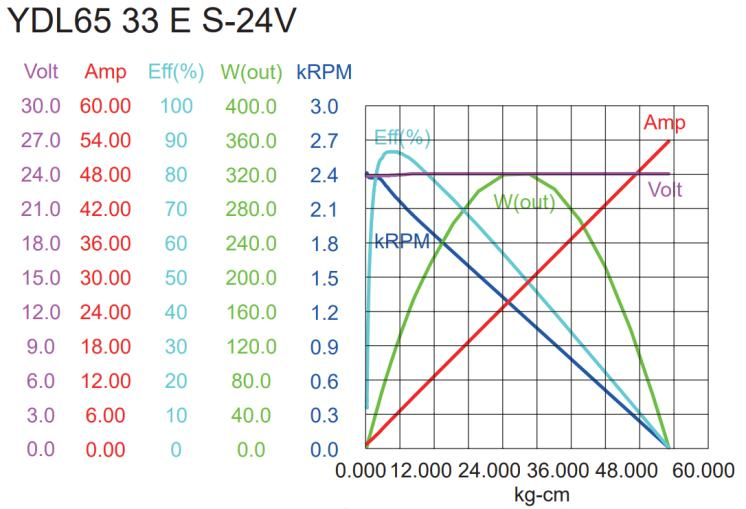

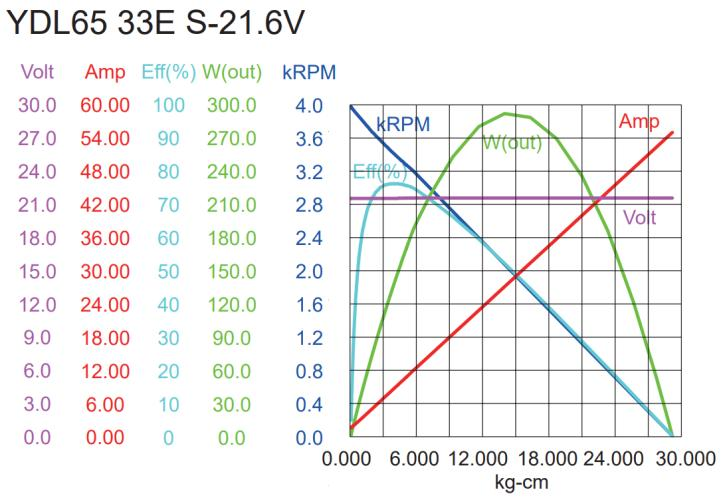

Performance curve：

YDL-BL DC Motor Model:50/65 4YDL-BL DC Motor Model:50/65 5

Applicationscenarios:

FasciaGun、Robot、ElectricDoor、RobotVacuum、ElectricStroller
