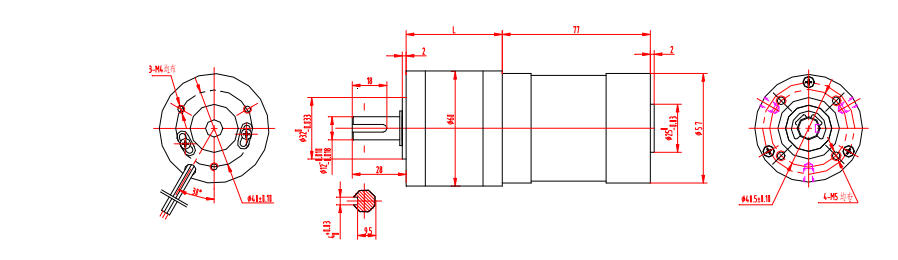

60JXG300K5778

Product Features and Applications

1. Equipped with a brushless DC motor, it supports both forward and reverse rotation with adjustable speed.
2. The planetary gear hole is equipped with needle roller bearings, which effectively enhances load capacity and prolongs service life.
3. Suitable for applications requiring minimal maintenance and low electromagnetic interference.

4. Unless otherwise requested by the user, the manufacturer may supply a 56JX reducer (56mm diameter).

Model		Rated voltage				No-load speed					No-load current						Rated speed					Rated torque						Output power				Peak torque
W5778-2420		24				2000					450						1200					3000						40				2.8
W5778-2430		24				3000					400						2000					3000						60				4
Main technical parameters of planetary gear reducer： Model：48JXG200K G12/ W5778-2420
Reduction ratio									3.6			4.25			13				15			18			47			55			65			76
Number of stages									1			1			2				2			2			3			3			3			3
Reducer length							mm		46.0			46.0			46.0				46.0			46.0			57.5			57.5			57.5			57.5
No-load speed							r/min		555			470			154				133			111			42			36			30			26
Rated speed							r/min		333			282			92				80			66			25			22			18			16
Rated torque							kg.cm		10			12			30				41			49			120			140			166			194
Maximum instantaneous load							kg.cm		30			30			100				100			100			300			300			300			300
Model：48JXG200K G12/ W5778-2430
Reduction ratio									3.6			4.25			13				15			18			47			55			65			76
Number of stages									1			1			2				2			2			3			3			3			3
Reducer length							mm		46.0			46.0			46.0				46.0			46.0			57.5			57.5			57.5			57.5
No-load speed							r/min		833			706			230				200			167			64			54			46			39
Rated speed							r/min		555			470			154				133			111			42			36			30			26
Rated torque							kg.cm		10			12			30				41			49			120			140			166			194
Maximum instantaneous load							kg.cm		30			30			100				100			100			300			300			300			300
