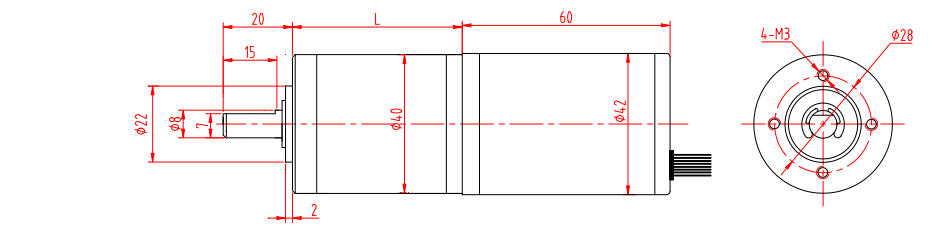

40JXG50K4260

Product features and indications:

1. The brushless DC motor is configured to operate in both forward and reverse directions with adjustable speed.
2. The planetary gear hole is equipped with needle roller bearings, which effectively enhances load capacity and prolongs service life.

3. Suitable for applications requiring minimal maintenance and low electromagnetic interference.

Model	Rated voltage				No-load speed					No-load current						Rated speed						Rated torque					Output power						Peak torque
W4260-2420	24				2000					0.3						1400						0.6					8.6						1.8
W4260-2430	24				3000					0.3						2100						0.6					13						1.8
Main technical parameters of planetary gear reducer: Model: 40JXG50K G8D/ W4260-2420
Reduction ratio										3.8		4.9			15			19			24		56		71		91		116			212		271		346
Number of stages										1		1			2			2			2		3		3		3		3			4		4		4
Reducer length							mm			35.5		35.5			45.5			45.5			45.5		55.5		55.5		55.5		55.5			66		66		66
No-load speed							r/min			524		410			133			105			83		36		28		22		17			9.4		7.4		5.8
Rated speed							r/min			366		287			93			74			58		25		20		15		12			7.8		6.4		5.2
Rated torque							kg.cm			2.1		2.6			7.3			9.2			12		25		31		40		50			50		50		50
Maximum instantaneous load							kg.cm			15		15			60			60			60		150		150		150		150			150		150		150
Model: 40JXG50K G8D/ W3660-2440
Reduction ratio										3.8		4.9			15			19			24	56			71		91		116			212			271
Number of stages										1		1			2			2			2	3			3		3		3			4			4
Reducer length							mm			35.5		35.5			45.5			45.5			45.5	55.5			55.5		55.5		55.5			66			66
No-load speed							r/min			785		615			200			158			125	54			42		33		26			14			11
Rated speed							r/min			550		430			140			111			88	38			30		23		18			12			10
Rated torque							kg.cm			2.1		2.6			7.3			9.2			12	25			31		40		50			50			50
Maximum instantaneous load							kg.cm			15		15			60			60			60	150			150		150		150			150			150
