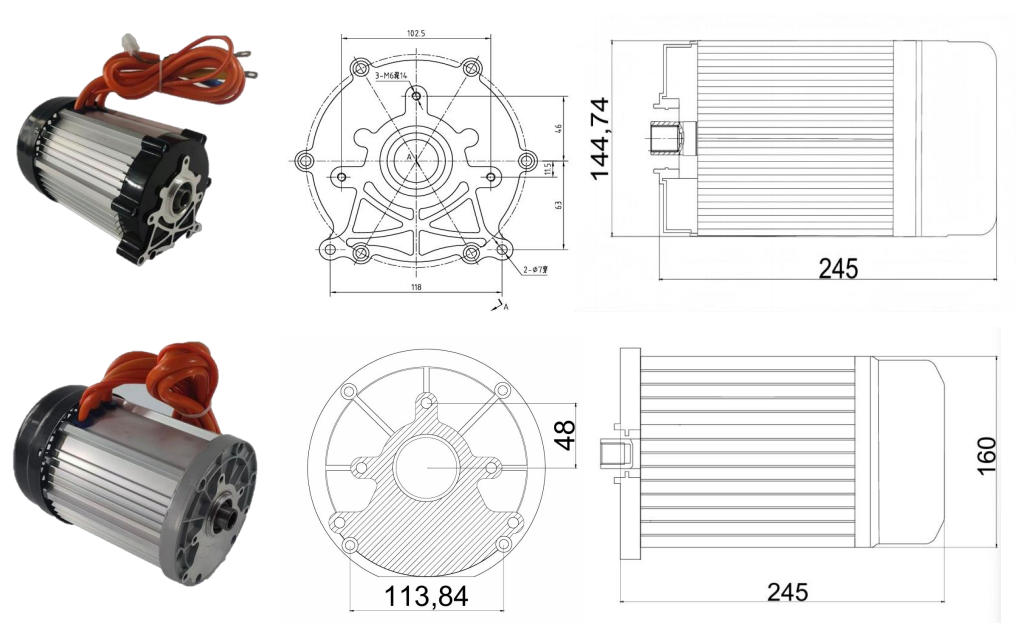

DC Permanent Magnet Synchronous Motor Series 140-2

Main Technical Data:

Operating Voltage（V）		Rated power (KW)				Peak Power (KW)					Rated Speed (RPM)						Rated Current (A)			Peak Torque (N.m)
48/60/72		1.5				3.5					3600						39/36/26			43
48/60/72		2.2				4.5					3600						57/46/38			45
48/60/72/84		2.5				5.0					3600						65/52/43			50
60/72/96		3.0				6.0					3600						78/60/52			55
60/72/96		3.6				7.5					3600						91/73/62			60
60/72/96		4.0				9.0					3600						105/83/70			70

DC four-hole permanent magnet synchronous motor

1.Small volume and light weight
2.High reliability and easy maintenance
3.High power density, wide high-efficiency area
4.Low torque ripple, smooth start
5.Wide speed regulation range, excellent regenerative braking performance
6.The encoder uses imported chips, and the motor has strong reliability
7.High torque, high speed, low noise
8.Suitable for heavy-duty and special-purpose vehicles
