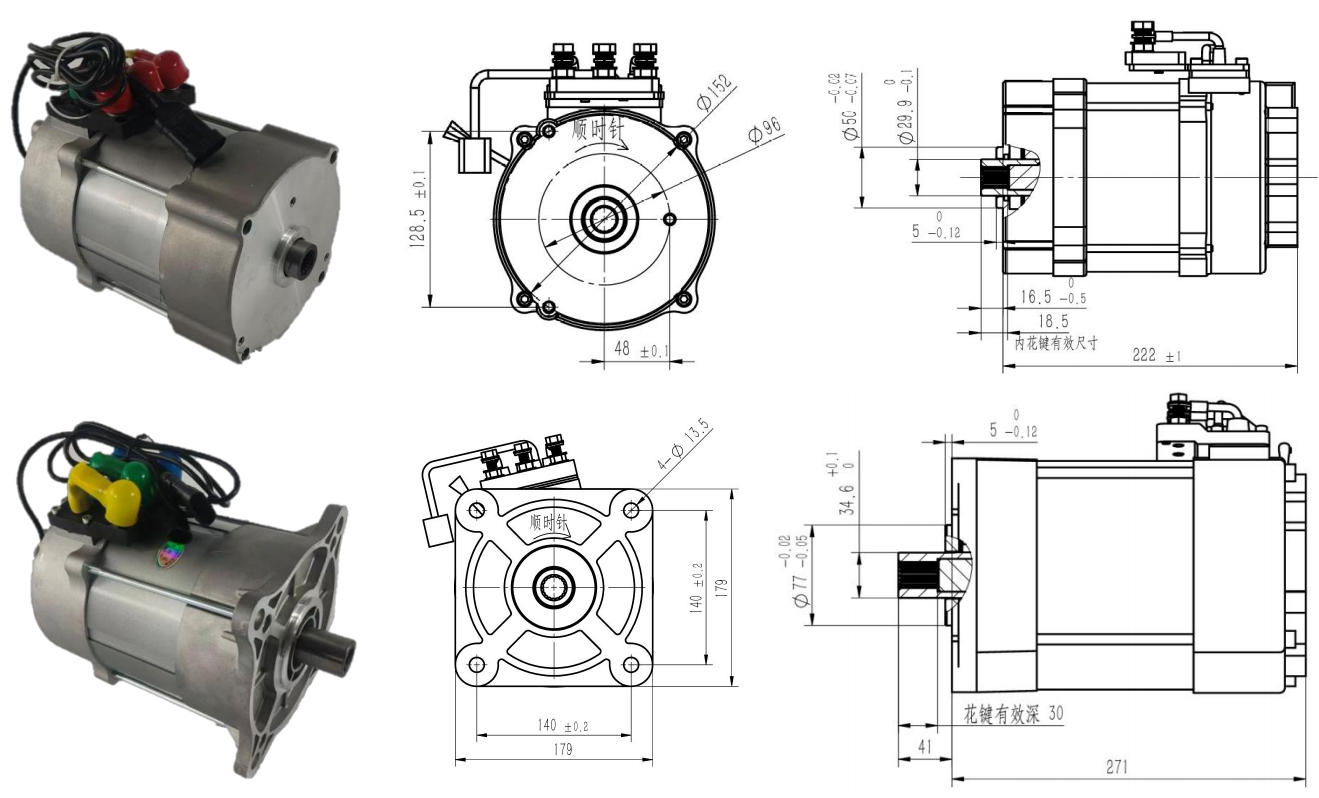

AC Asynchronous Motor Series 155

Main Technical Data:

Operating Voltage（V）		Rated power (KW)				Peak Power (KW)					Rated Speed (RPM)						Rated Current (A)			Peak Torque (N.m)
48/60/72		1.5				3.0					3000						39/36/26			43
48/60/72		2.5				5.0					3000						65/52/43			50
48/60/72/84		3.0				6.0					3000						78/62/52			60
60/72/96		4.0				8.5					3000						105/85/70			68
60/72/96		5.0				11.0					3000						130/104/86			80
72/96		5.5				12.0					3600						135			90

DC four-hole permanent magnet synchronous motor

1.Small volume and light weight
2.High reliability and easy maintenance
3.High power density, wide high-efficiency area
4.Low torque ripple, smooth start
5.Wide speed regulation range, excellent regenerative braking performance
6.The encoder uses imported chips, and the motor has strong reliability
7.High torque, high speed, low noise
8.Suitable for heavy-duty and special-purpose vehicles
