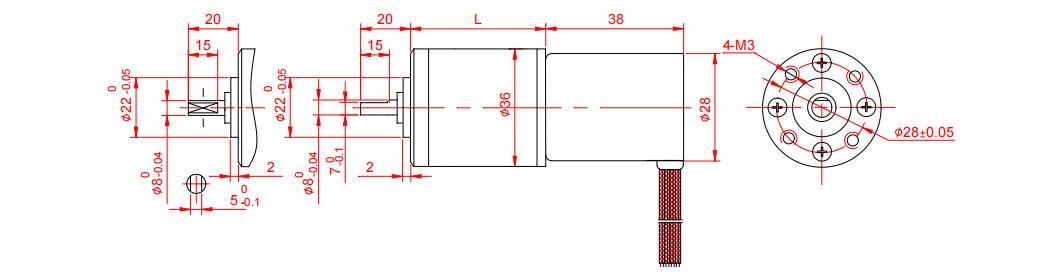

36JX30K

Product features and indications:

1. A planetary gear reducer with a diameter of 28mm, capable of handling a load of 20kg·cm.
2. The brushless DC motor is configured to operate in both forward and reverse directions with adjustable speed.

3. Suitable for applications requiring minimal maintenance and low electromagnetic interference.

Model	Rated voltage				No-load speed					No-load current						Rated speed						Rated torque					Output power						Peak torque
W2838-2450	24				5000					100						3500						80					2.9						250
W2838-2460	24				6000					100						4200						80					3.4						250
Main technical parameters of planetary gear reducer: Model: 36JX30K G8D/2838-2450
Reduction ratio						3.7		5.2		14		19		27			51			71		100		139		189		264		369			516		720
Number of stages						1		1		2		2		2			3			3		3		3		4		4		4			4		4
Reducer length				mm		31.5		31.5		38.5		38.5		38.5			48.5			48.5		48.5		48.5		55.5		55.5		55.5			55.5		55.5
No-load speed				r/min		1348		965		357		263		185			98			70		50		36		26		19		14			9.7		6.9
Rated speed				r/min		943		676		250		184		130			69			49		35		25		19		13		9.5			6.8		5.4
Rated torque				kg.cm		0.3		0.4		0.9		1.2		1.7			3.0			4.1		58		8.1		10		14		19			27		30
Maximum instantaneous load				kg.cm		9		9		30		30		30			60			60		60		60		90		90		90			90		90
Model: 36JX30K G8D/2838-2460
Reduction ratio						3.7		5.2		14		19		27			51			71		100		139		189		264		369			516		720
Number of stages						1		1		2		2		2			3			3		3		3		4		4		4			4		4
Reducer length				mm		31.5		31.5		38.5		38.5		38.5			48.5			48.5		48.5		48.5		55.5		55.5		55.5			55.5		55.5
No-load speed				r/min		1617		1158		429		316		222			118			85		60		43		32		23		16			12		8.3
Rated speed				r/min		1132		811		300		221		156			82			59		42		30		22		16		11			8.1		6.4
Rated torque				kg.cm		0.3		0.4		0.9		1.2		1.7			3.0			4.1		5.8		8.1		10		14		19			27		30
Maximum instantaneous load				kg.cm		9		9		30		30		30			60			60		60		60		90		90		90			90		90
