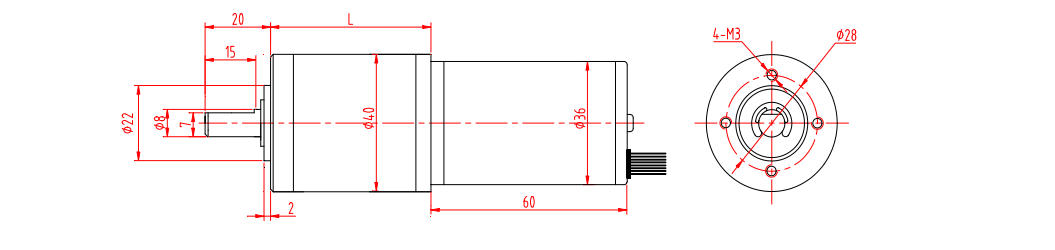

40JXG50K

Product features and indications:

1. The brushless DC motor is configured to operate in both forward and reverse directions with adjustable speed.
2. The planetary gear hole is equipped with needle roller bearings, which effectively enhances load capacity and prolongs service life.

3. Suitable for applications requiring minimal maintenance and low electromagnetic interference.

Model	Rated voltage				No-load speed					No-load current						Rated speed						Rated torque					Output power						Peak torque
W3660-2420	24				2000					0.09						1600						300					4.8						0.36
W3660-2440	24				4000					0.13						3200						480					15.7						1.0
Main technical parameters of planetary gear reducer: Model: 40JXG50K G8D/ W3660-2420
Reduction ratio						3.82		4.88		15		19		24			56			71		91		116		212		271		3.82			4.88		15
Number of stages						1		1		2		2		2			3			3		3		3		4		4		1			1		2
Reducer length				mm		35.5		35.5		45.5		45.5		45.5			55.5			55.5		55.5		55.5		65.5		65.5		35.5			35.5		45.5
No-load speed				r/min		524		410		133		105		83			36			28		22		17		9.4		7.4		524			410		133
Rated speed				r/min		419		328		107		84		67			29			23		18		14		7.5		5.9		419			328		107
Rated torque				kg.cm		1.1		1.4		4.1		5.1		6.5			14			18		23		30		50		50		1.1			1.4		4.1
Maximum instantaneous load				kg.cm		25		25		50		50		50			100			100		100		100		100		100		25			25		50
Model: 40JXG50K G8D/ W3660-2440
Reduction ratio						3.82		4.88		15		19		24			56			71		91		116		212		271		3.82			4.88		15
Number of stages						1		1		2		2		2			3			3		3		3		4		4		1			1		2
Reducer length				mm		35.5		35.5		45.5		45.5		45.5			55.5			55.5		55.5		55.5		65.5		65.5		35.5			35.5		45.5
No-load speed				r/min		524		410		133		105		83			36			28		22		17		9.4		7.4		524			410		133
Rated speed				r/min		419		328		107		84		67			29			23		18		14		7.5		5.9		419			328		107
Rated torque				kg.cm		1.1		1.4		4.1		5.1		6.5			14			18		23		30		50		50		1.1			1.4		4.1
Maximum instantaneous load				kg.cm		25		25		50		50		50			100			100		100		100		100		100		25			25		50
