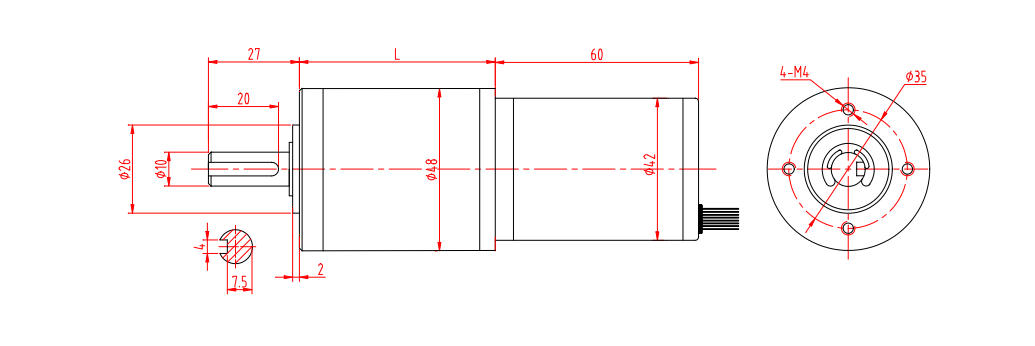

48JXG50K4260

Product features and indications:

1. The brushless DC motor is configured to operate in both forward and reverse directions with adjustable speed.
2. The planetary gear hole is equipped with needle roller bearings, which effectively enhances load capacity and prolongs service life.

3. Suitable for applications requiring minimal maintenance and low electromagnetic interference.

Model	Rated voltage				No-load speed					No-load current						Rated speed						Rated torque					Output power						Peak torque
W4260-2440	24				4000					0.3						2800						0.7					20						1.8
Main technical parameters of planetary gear reducer: Model: 48JXG50K G10/ W4260-2440
Reduction ratio						15		19		24		56		71			91			116		15		19		24		56		71			91		116
Number of stages						2		2		2		3		3			3			3		2		2		2		3		3			3		3
Reducer length				mm		42.5		42.5		42.5		52.5		52.5			52.5			52.5		42.5		42.5		42.5		52.5		52.5			52.5		52.5
No-load speed				r/min		267		211		167		71		56			44			34		267		211		167		71		56			44		34
Rated speed				r/min		187		147		117		50		39			31			24		187		147		117		50		39			31		24
Rated torque				kg.cm		8.5		11		14		29		36			47			50		8.5		11		14		29		36			47		50
Maximum instantaneous load				kg.cm		60		60		60		150		150			150			150		60		60		60		150		150			150		150
