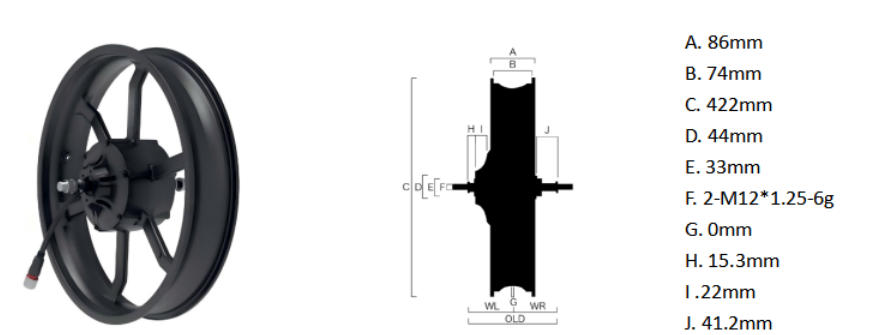

Product Details
| OLD | 135.0mm |
| WL | 67.5mm |
| WR | 67.5mm |
| Installation Position | Rear Wheel |
| Motor Model | 110061.D |
| Applicable Model | e-city |
| Wheel Size(Inch) | 16*1.75 |
| Deceleration type | Outer Rotor Single-stage Reducer |
| Rated Voltage(V) | 36/43/48 |
| No-load Speed(Rpm) | 325±10 |
| Rated Power(W) | 350 |
| Rated SpeedNt(Rpm) | 290±10 |
| Max Torque(N.m) | 45 |
| Efficiency(%) | ≥80 |
| Weight(Kg) | 5.0 |
| Noise Level(dB) | ≤55 |
| Operating Temperature(℃) | -20～45 |
| Brake Type | Disc Brake |
| Cabling Route | Through Shaft_Right |
| Tests & Certifications | CCC/CE Waterproof:IPX5 Salt Spray Test Standard(h):96 |

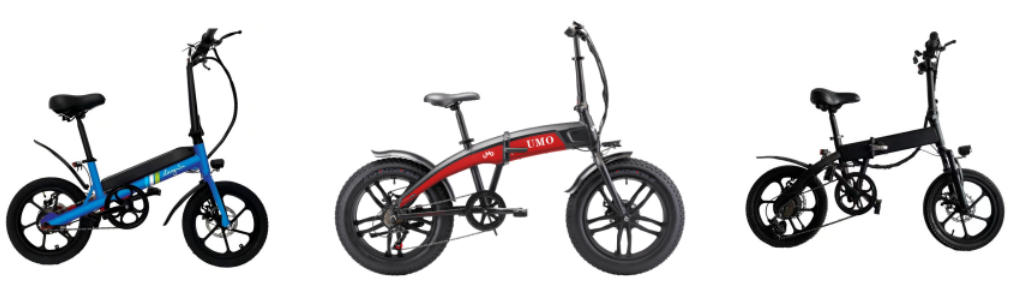

Applicable To Vehicle Models:
