Product Details

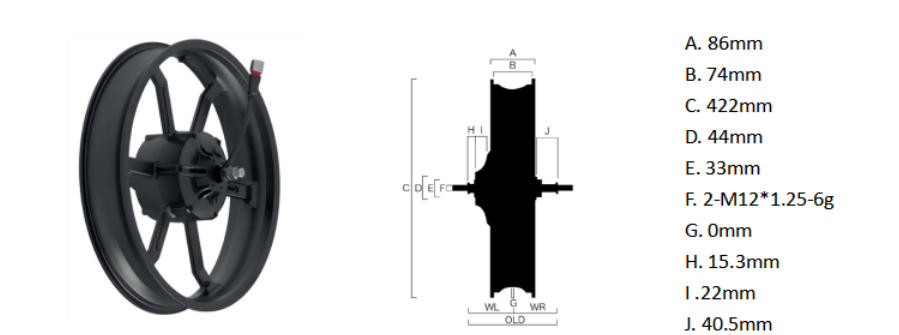

YDL-110061.DC
OLD175.0mm
WL87.5mm
WR87.5mm
Installation PositionRear Wheel
Motor Model110061.DC
Applicable ModeleMTB
Wheel Size(Inch)20*4.0
Deceleration typeOuter Rotor Single-stage Reducer
Rated Voltage(V)36/43/48
No-load Speed(Rpm)760±10
Rated Power(W)750
Rated Speed(Rpm)375±10
Max Torque(N.m)85
Efficiency(%)≥80
Weight(Kg)7.3
Noise Level(dB)≤55
Operating Temperature(℃)-20~45
Brake TypeDisc Brake
Cabling RouteShaft Side_Left
Tests & CertificationsCCC/CE Waterproof:IPX5 Salt Spray Test Standard(h):96

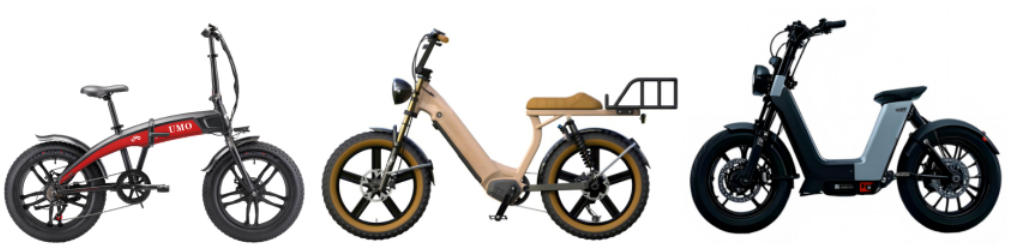

Applicable To Vehicle Models:

YDL-110061.DC
