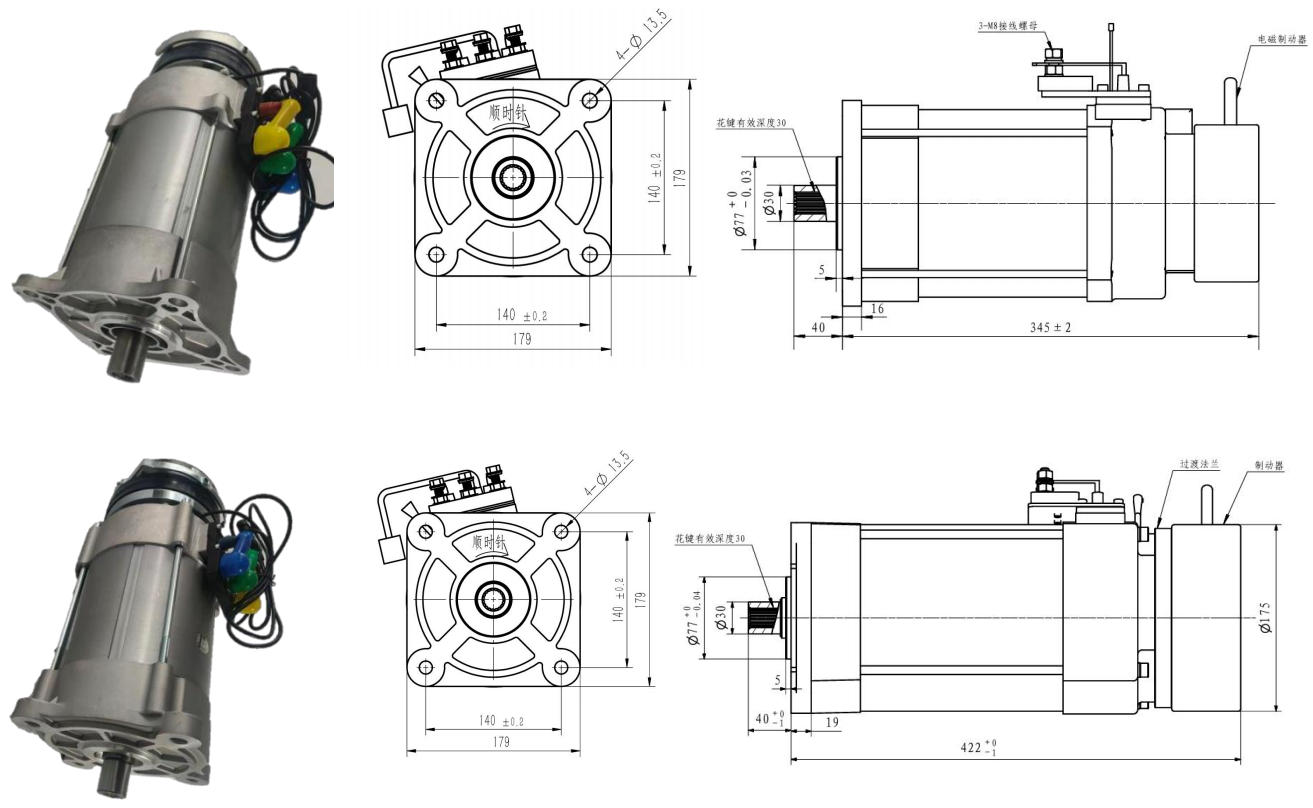

AC Asynchronous Electromagnetic Braking Motor Series 155

Main Technical Data:

Operating Voltage（V）		Rated power (KW)				Peak Power (KW)					Rated Speed (RPM)						Rated Current (A)			Peak Torque (N.m)
48/60/72		1.5				3.0					3000						39/36/26			43
48/60/72		2.5				5.0					3000						65/52/43			50
48/60/72/84		3.0				6.0					3000						78/62/52			60
60/72/96		4.0				8.5					3000						105/85/70			68
60/72/96		5.0				11.0					3000						130/104/86			80
72/96		7.5				15.0					3000						135			130
72/96		10.0				20.0					3000						170			150
72/96		12.0				24.0					3600						190			165

AC asynchronous motor

1.High temperature resistance and cost-performance
2.High reliability and easy maintenance
3.High power density, wide campus area
4.Low torque ripple and smooth startup
5.Wide speed range and good regenerative braking
6.The encoder uses imported chips and the motor is highly reliable
7.High speed, low noise
8.Suitable for autonomous vehicles, floats, and special-purpose vehicles
